Custom Motorcycle Brake Discs Manufactured to Specification
Custom motorcycle brake discs manufactured around your drawings, samples, dimensions, mounting geometry, and project requirements.
HPM works with motorcycle brands, aftermarket manufacturers, distributors, and professional sourcing teams that need brake discs produced for a specific application or product program.
Geometry
Dimensions and offset
Configuration
Fixed or floating
Production
OEM / private label
Brake disc fitment is defined by the complete mounting geometry, not by diameter alone.
Geometry / construction / application
Motorcycle Brake Discs Built Around Your Design
A custom motorcycle brake disc is not defined by diameter alone. The disc has to work with the motorcycle’s hub, caliper, wheel, mounting interface, and braking system.
Depending on the application, the required geometry may include outside diameter, thickness, offset, center bore, mounting pattern, hole dimensions, and other critical interfaces.
HPM manufactures brake discs based on your engineering requirements rather than asking you to choose from a fixed standard catalog.
You can provide 2D engineering drawings, 3D CAD files, a physical sample, existing OEM dimensions, detailed specifications, or application and fitment information.
You bring the design, sample, or specification. HPM manufactures the brake disc around it.
Drawing-Based
Manufacture around your 2D drawing, CAD file, approved dimensions, or technical specification.
Sample-Based
A physical sample or existing OEM component can provide the reference for a custom project.
Application Geometry
Fitment is developed around the wheel, hub, caliper, mounting interface, and braking-system requirements.
Fixed, Floating, One-Piece and Two-Piece Configurations
Different motorcycle applications use different brake disc constructions. HPM can manufacture the configuration required by the project design and application.
Fixed Brake Discs
A fixed disc uses a single integrated structure for the braking surface and mounting interface when the application calls for a rigid one-piece construction.
Integrated structure | Application-defined geometry
Floating Brake Discs
A floating disc separates the braking ring from the carrier and allows controlled movement between the components according to the disc design.
Ring and carrier | Thermal design requirement
One-Piece Brake Discs
Integrated construction manufactured as one component when the required braking and mounting geometry is designed for a single piece.
Single component | Customer-specified design
Two-Piece Brake Discs
Separate braking ring and carrier configuration manufactured according to the required overall assembly geometry and application.
Ring and carrier | Assembly specification
The appropriate configuration depends on the application, disc design, operating conditions, and customer requirements. Front and rear brake disc designs can be manufactured according to the project specification.

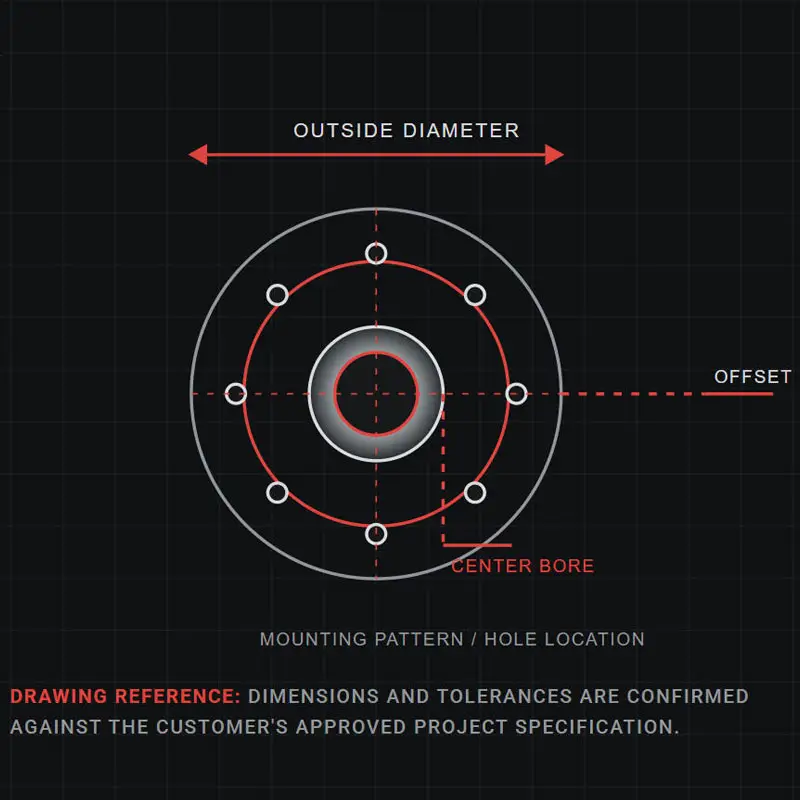

Custom Brake Disc Dimensions & Mounting Geometry
A motorcycle brake disc must match the complete mounting geometry, not simply a generic model description or outside diameter.
Diameter
Outside diameter according to the drawing or approved specification.
Thickness
Disc thickness matched to the braking system and associated components.
Offset
Disc position relative to the wheel, caliper, and mounting interface.
Mounting Pattern
Hole count, diameter, bolt-circle, location, and pattern for the hub interface.
Center Bor
Center bore, locating dimensions, and other required interface geometry.
Related Geometry
Additional dimensions required by the wheel, hub, caliper, and application.
Material, Heat Treatment & Surface Finish
Brake disc material and processing requirements depend on the disc design, application, operating conditions, and customer specification.
HPM can evaluate material, heat-treatment, and surface-finish requirements as part of the manufacturing project.
Depending on the design, the specification may include requirements for the braking surface, carrier, heat treatment, surface finish, corrosion resistance, appearance, marking, and branding.
Rather than limiting your project to a predefined material or finish menu, HPM works from the requirements of the specific brake disc design.
Material selection, heat treatment, surface finish, and related processing details are subject to project requirements and HPM confirmation.
Braking surface
Review the required design and application requirements for the braking surface.
Carrier or bell
For two-piece or floating designs, define the required carrier geometry and project specification.
Appearance and marking
Logo, product marking, finish, and identification can be incorporated when defined by the project.
Critical brake disc geometry must follow the application requirements
Thickness / flatness / concentricity / runout
Specific tolerances and inspection methods are determined by the customer’s drawing and project requirements.
Manufacturing Quality for Critical Brake Disc Geometry
Brake discs require control of critical geometry because the disc interfaces directly with the motorcycle’s braking and wheel assembly.
Disc thickness
Control the thickness requirement defined by the customer’s drawing and approved project specification.
Flatness and runout
Review the dimensional requirements that affect the disc’s installed geometry and application.
Concentricity
Maintain the relationship between the disc’s locating and braking features according to the project requirements.
Mounting geometry
Control mounting-hole geometry, center bore, offset, and other critical dimensions from the approved specification.
Project inspection
Inspection requirements can be incorporated into the production specification where required.
From Drawing or Sample to Production
HPM’s custom manufacturing process starts with the customer’s actual requirements and approved brake disc specification.
Send Your Requirements
Provide your drawing, CAD file, physical sample, OEM dimensions, or other available technical information.
Specification Review
Review geometry, mounting interface, configuration, material requirements, finish, marking, and project scope.
Sample / Production
Once the specifications are confirmed, manufacture the brake discs according to the agreed requirements.
Production Supply
Use the approved specification as the basis for repeat production and customer-specific supply.
PROJECT MODEL
Drawing / sample / specification review / manufacturing / inspection requirements / repeat supply
OEM & Private-Label Motorcycle Brake Discs
HPM supports custom motorcycle brake disc production for customers developing their own products or selling under their own brand.
Your project may include custom disc geometry, customer-specified dimensions, fixed or floating construction, one-piece or two-piece design, front or rear application, material or processing requirements, logo or product marking, OEM production, and private-label production.
The manufacturing specification remains based on the customer’s approved design and project requirements.
OEM Production
Manufacture to an approved application or customer specification.
Private Label
Support customer branding, marking, identification, and program scope.vide the reference for a custom project.
Repeat Supply
Use the approved design as the basis for ongoing production requirements.
Related Motorcycle Brake & Clutch Components
Brake discs are part of the wider motorcycle braking system. Explore the directly related hydraulic line and connection products for your project.
Motorcycle Brake Hoses
Custom-length brake hoses and braided brake lines for projects requiring specific routing, fittings, or private-label supply.
Motorcycle Clutch Lines
Custom clutch lines for specific length, fitting, routing, and hydraulic clutch requirements.
Brake & Clutch Fittings
Banjo fittings and related connection hardware for brake and clutch hydraulic systems.
Common Questions
Can HPM manufacture custom motorcycle brake discs from a drawing?
Yes. HPM can manufacture motorcycle brake discs according to customer drawings and project specifications.
Can you manufacture brake discs from a physical sample?
Yes. A physical sample can be used as the basis for evaluating a custom brake disc project.
Do you manufacture both front and rear motorcycle brake discs?
Yes. HPM can manufacture both front and rear brake disc designs according to the application requirements.
Can you manufacture fixed and floating motorcycle brake discs?
Yes. Both fixed and floating configurations can be manufactured according to the project requirements.
Can you manufacture one-piece and two-piece brake discs?
Yes. HPM supports both one-piece and two-piece motorcycle brake disc configurations.
Can the brake disc diameter, thickness and offset be customized?
Yes. Custom diameter, thickness, offset, mounting pattern, and other critical dimensions can be manufactured according to the customer’s specifications.
Can you manufacture a brake disc with a custom mounting pattern?
Yes. The mounting-hole pattern and related mounting geometry can be manufactured according to the customer’s drawing or approved specification.
Can you add our logo or product marking?
Yes. Customer-specified logo and marking requirements can be incorporated into the manufacturing project.
Do you offer OEM or private-label motorcycle brake discs?
Yes. HPM supports OEM and private-label brake disc production for B2B customers.
Do you keep standard motorcycle brake discs in stock?
HPM’s focus is custom manufacturing rather than maintaining a retail replacement-parts inventory. We manufacture according to customer drawings, samples, dimensions, and project requirements.
Can you manufacture a brake disc without a complete drawing?
A physical sample, OEM dimensions, CAD data, or other technical information may be used to evaluate the project. The available information will determine what can be confirmed before production.
Do you provide brake disc testing or certification?
Specific testing and certification services are not currently part of HPM’s confirmed capability. For projects requiring specific testing or certification, HPM confirmation is required before these requirements are included in the project scope.
Request a Custom Motorcycle Brake Disc Quote
Have a drawing, sample, OEM specification, or an existing brake disc you want to reproduce? Send us your requirements. HPM will review your brake disc project based on the actual application and manufacturing specifications.
